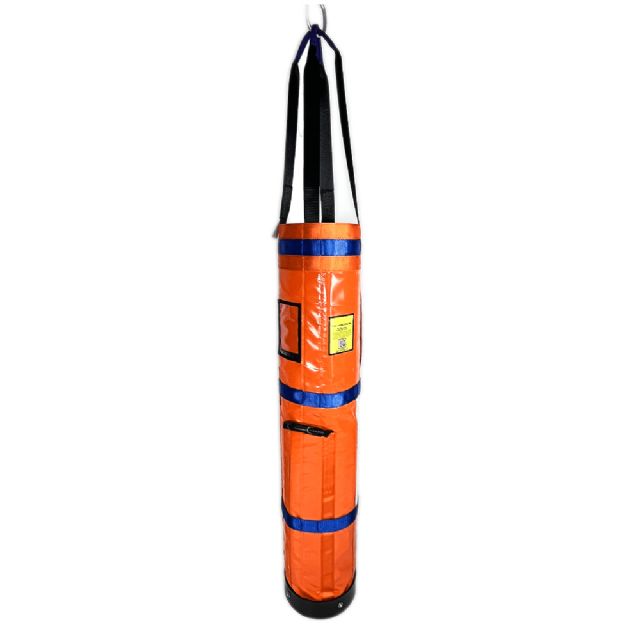

To fit Cylinder Types W, N, K, VK/LK, X47S and similar. The secure front-loading feature on this lifting bag allows cylinders to be more easily loaded and accessed in tight spaces.
Dimensions - 250mm Diam x 1320mm High up the Sidewall
300kg SWL, Batch Tested at 7:1 Safety Factor
Two Polyester Lifting Slings for 100% redundancy, complying with EN1492-1
CE marked with EC Declaration of Conformity Certificate
Ring-Sling System Provides Immense Side Wall Strength and Load Security
5mm thick Plastic Internal Base Plate
Tough External Hard Tray for abrasion and knock resistance
Clear Pouch for Gas Identification information
Half Bellows for snug fit around shoulder to allow valve gear be monitored, or vent to atmosphere in an incident
Gas Drainage Vents near base of bag
Supplied in Orange with Reflective Strips for High Visibility
You have two options on the style of lifting sling connection point:
Ferrous Steel Master Link: Standard PEWAG Master Link used throughout mainland industry
Stainless Steel Master Link: PEWAG Marine Grade Stainless Master Link used in marine or corrosive environments for maximum confidence
