Lithium Battery Double Door Storage & Charging Cabinet

Safe storage and charging of lithium-ion batteries with integrated alarm system.

Specification:

• Robust, high-quality, scratch-resistant outer body with powder-coated textured surface
• 90 minute fire protection from outside to inside (type 90 / type tested in accordance with EN 14470-1) and for more than 90 minutes fire resistance for fires from inside to outside

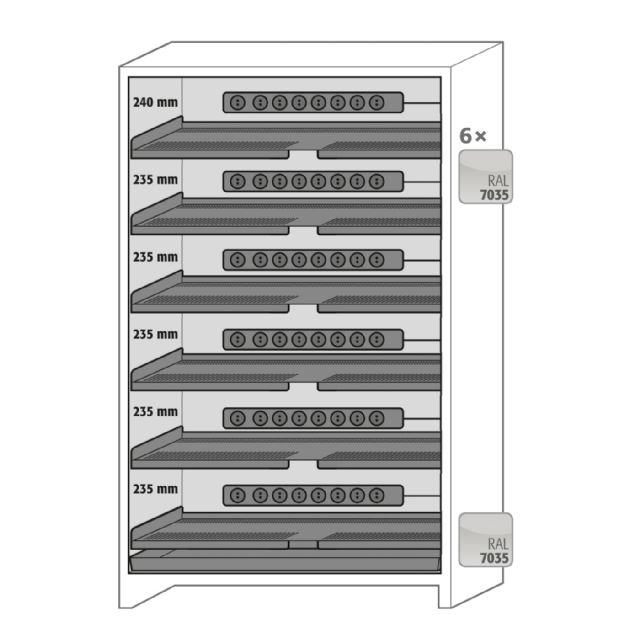

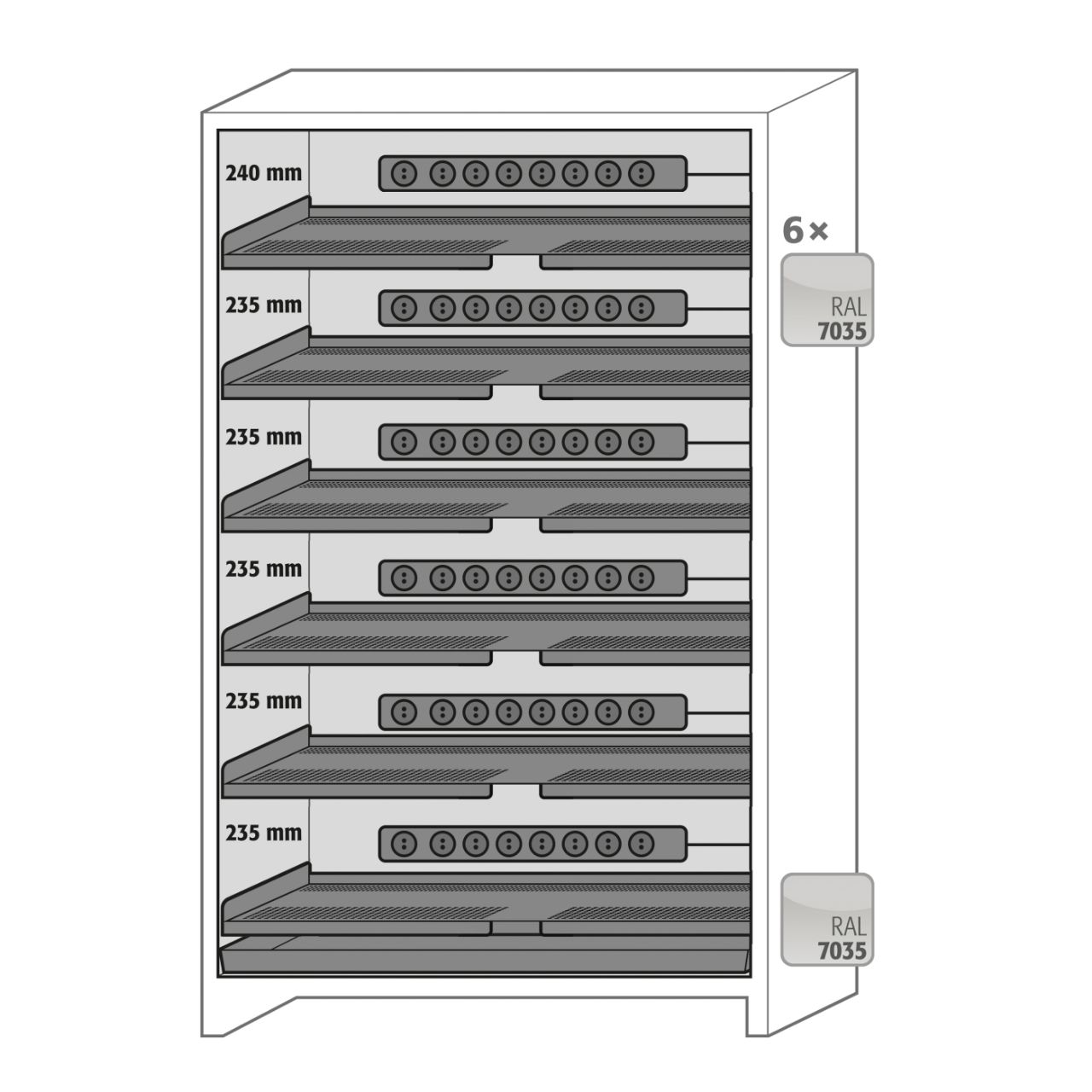

• 6 x Insulated shelves
• 1 x Bottom collecting sump (sheet steel powder-coated)
• 6 x Mains power socket strips (48 outlets in total)
• Hazards reliably identified – with the LED display and visual/audible alarms, you can quickly recognise developing fires without having to open the cabinet doors
• The insulated shelves are propagation tested for safety at every storage level. In the event of a battery fire, spread to other batteries is prevented
• Smoke detectors and a temperature sensor detect even incipient fires and can transmit alarms to the building control system quickly
• The ventilation attachment prevents heat build-up when charging the batteries.
• Convenient cabinet entry: open both doors at the same time with just one hand (AGT)
• The additional 3-point locking system combines convenient operation with successfully tested safety of closed doors in a real fire
• Body colour anthracite grey (RAL 7016), with wing doors in gentian blue (RAL 5010)

Dimensions / Weight:

• External - 1193 x 615 x 2114 mm
• Internal - 1050 x 503 x 1647 mm
• Net Weight - 565kg

Certification:

• EN 14470-1: Fire resistance of 90 minutes (type 90) from outside to inside
• VDMA 24994: Fire resistance in the event of a thermal runaway by means of a real fire test
• EN 1363-1: Fire resistance of 90 minutes from inside to outside
• CE compliant

Includes UK mainland delivery to point of use.

Lead Time: Approx 10 to 15 working days
