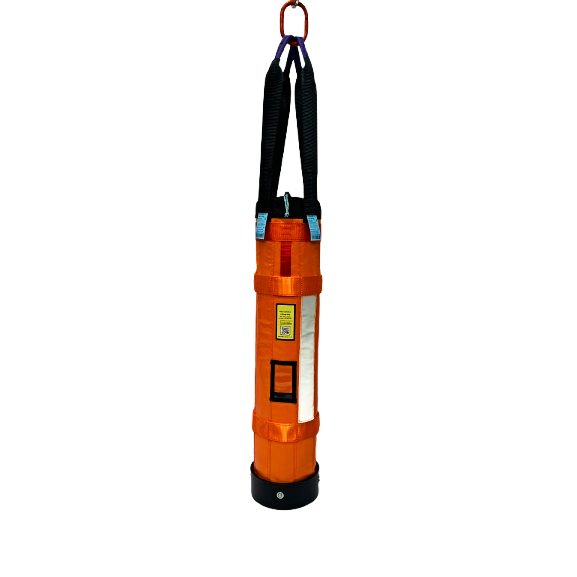

Gas Cylinder Lifting Bag 160mm x 740mm

To fit Cylinder Types X and similar.

  • Dimensions - 160mm Diam x 740mm High up the Sidewall
  • 300kg SWL, Batch Tested at 7:1 Safety Factor
  • Two Polyester Lifting Slings for 100% redundancy, complying with EN1492-1
  • CE marked with EC Declaration of Conformity Certificate
  • Ring-Sling System Provides Immense Side Wall Strength and Load Security
  • 5mm thick Plastic Internal Base Plate
  • Tough External Hard Tray for abrasion and knock resistance
  • Clear Pouch for Gas Identification information
  • Half Bellows for snug fit around shoulder to allow valve gear be monitored, or vent to atmosphere in an incident
  • Gas Drainage Vents near base of bag
  • Supplied in Orange with Reflective Strips for High Visibility

You have two options on the style of lifting sling connection point:

  • Ferrous Steel Master Link: Standard PEWAG Master Link used throughout mainland industry
  • Stainless Steel Master Link: PEWAG Marine Grade Stainless Master Link used in marine or corrosive environments for maximum confidence

CLICK IMAGE TO ZOOM
Gas Cylinder Lifting Bag 160mm x 740mm
CLB11 Cylinder Lifting Bag - Ferrous Steel Link
£330.00 inc VAT
£275.00 excl VAT
CLB11 Cylinder Lifting Bag - Stainless Steel Link
£366.00 inc VAT
£305.00 excl VAT
